PositionImage[animated]

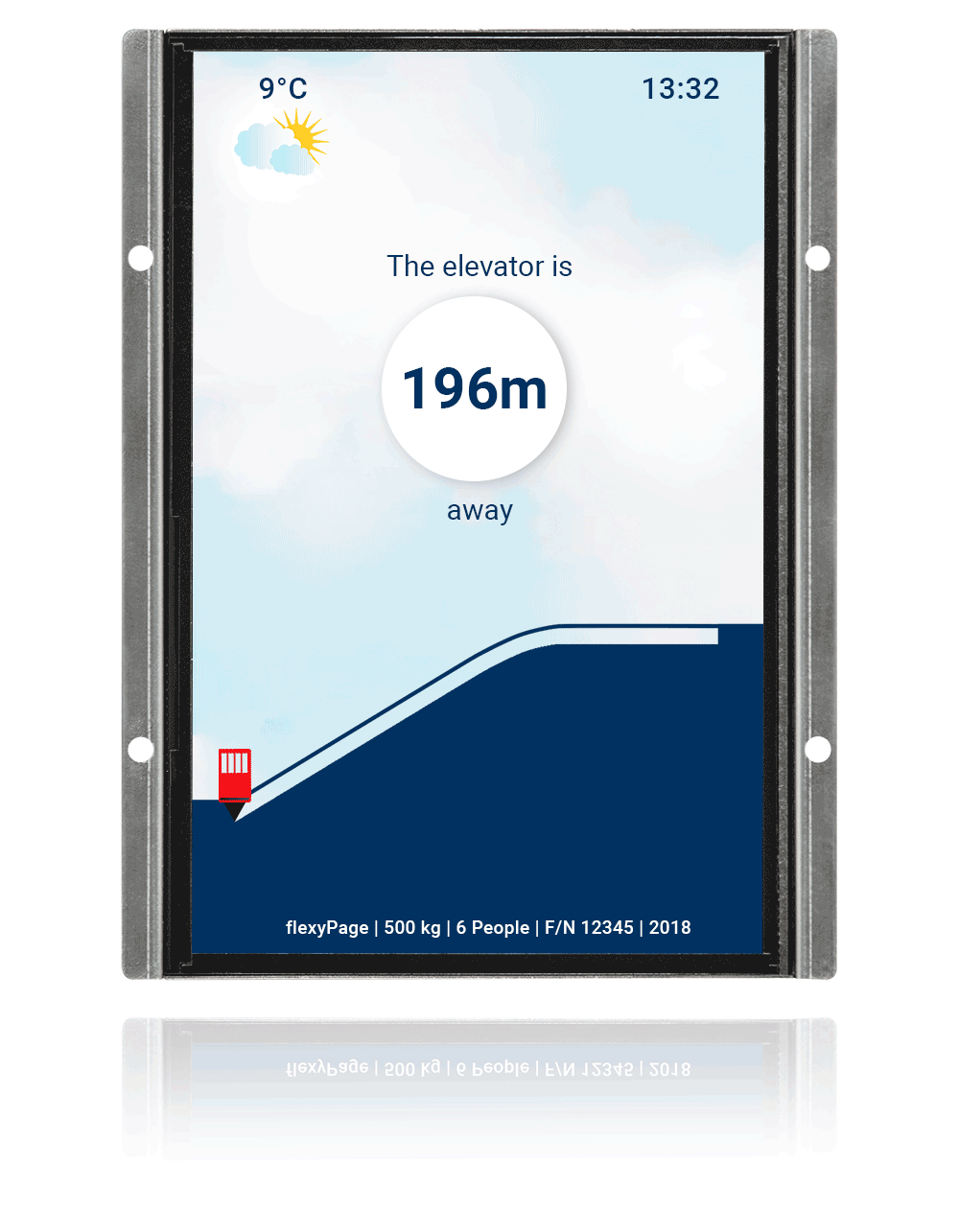

The widget PositionImage[animated] displays the frame of an animated GIF, depending on the current position of the elevator. Thereby, e.g. the ride of the cabin or general drive and position dependent animations can be simulated. For a good performance, the file size of the GIF should be as small as possible. The times between the frames defined in the GIF file are not taken into account.

To display the appropriate frame for the position in the shaft, the elevator requires a position sensor which provides the position values to the display via CANopen lift. In addition, a learning journey must be carried out.
